Wayne
WATER PUMP SUBMERSIBLE WAYNE TSC130 56517 MULTI-USE 1/4HP 1050GAL
- SKU:
- 040066100757
- MPN:
- 207a1bc8-0c96-453b-a9b3-6e3746ad2a86
- Shipping:
- Calculated at Checkout
Description

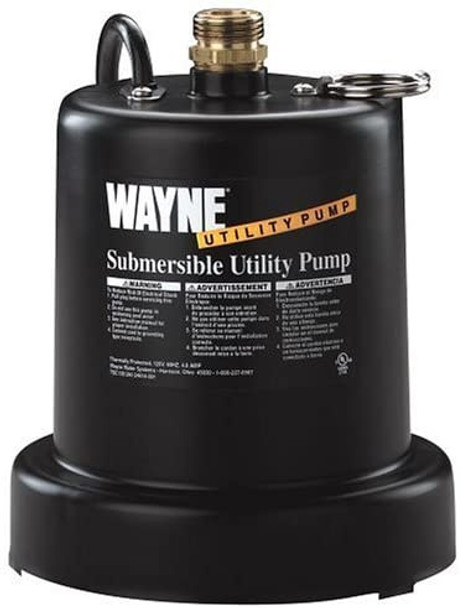

WAYNE 1/4 HP Thermoplastic Submersible Utility Pump
Model: TSC130
Product Overview
Features:
- Made with a thermoplastic housing and volute
- 120V, 1/4HP, dielectric oil filled 1 phase motor
- Covered by a 1 Year Limited warranty
Specifications:
- Height: 9"
- Width: 7"
- Depth: 7"
- Flow Rate (GPM): 18
- Horsepower: 1/4HP
- Discharge Diameter: 3/4"
- Submersible: Yes
- Voltage: 120V
- Switch Type: Manual
Additional WAYNE Links
Dimensions and Measurements
Connection Size
0.75 in.
Depth
7 in.
Discharge Diameter
0.75 in.
Flow Rate (GPM)
18
Flow Rate at 0 Feet of Head
17.5
Flow Rate at 10 Feet of Head
14.33
Flow Rate at 15 Feet of Head
12.17
Flow Rate at 5 Feet of Head
15
Height
9 in.
Width
7 in.
Characteristics and Features
Configuration
Submersible Pump
Connection Type
GHT
Material
Thermoplastic
Submersible
Yes
Switch Type
Manual
Electrical and Operational Information
Amperage
15
Electrical Phases
1
Frequency
60 Hertz
Horsepower
0.25
Maximum Fluid Temperature
120 °F
Voltage
120
