WKGX201HBA

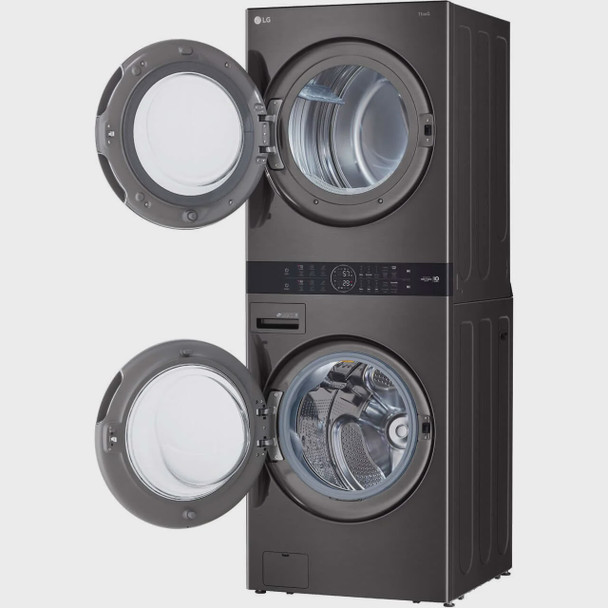

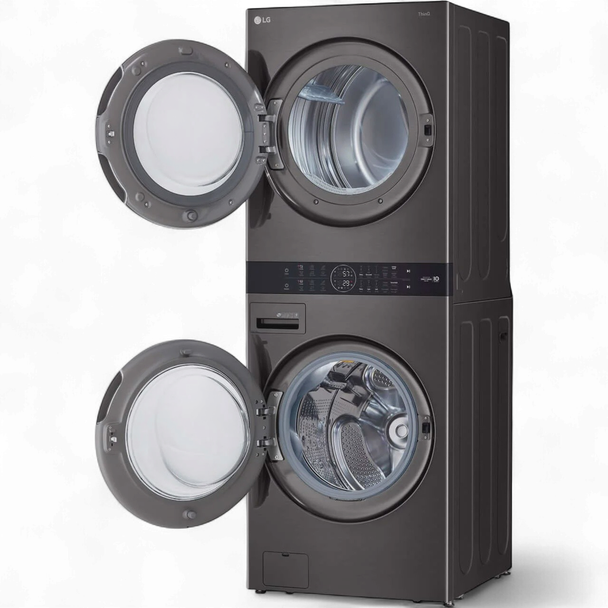

Single Unit Front Load LG WashTower™ with Center Control™ 4.5 cu. ft. Washer and 7.4 cu. ft. Gas Dryer

• Ultra Large Capacity 4.5 cu.ft. Washer and 7.4 cu.ft. Dryer let you clean larger loads
• Single Unit Vertical Design takes up half the floor space
• Our Sleekest Center Control® Yet –LED display makes it easier to reach the controls
• Built-in intelligence takes out the guesswork—AI technology selects optimal wash & dry settings
• Advanced washing and drying performance with TurboWash™ 360°, Allergiene™ Wash Cycle & TurboSteam™
• Get the ThinQ® app to access smart functions and ThinQ Care™ alerts
• Premium looks with real tempered glass doors designed to last

No. of Dryer Programs
6
Dryer Programs
Bedding, Delicates, Downloaded, Heavy Duty, Normal, Small Load
No. of Dryer Options
9
Dryer Options
Control Lock*, Drum Light*, Wi-Fi* / Remote Start*, Signal*, Steam, Steam Fresh*, Energy Saver, Reduce Static, Wrinkle Care
Drying Levels
Damp, Less, More, Normal, Very
Manual Dry Times
60 min., 50 min., 40 min., 30 min., 20 min.
Temperature Settings
High, Low, Low/Medium, Medium, Medium High


Washer Capacity
4.5 cu.ft.
Dryer Capacity
7.4 cu.ft.




Product Color
Black Steel (B)
Delay Wash
Yes
Full Touch Electronic Control Panel with LED Display
Yes
Electric Dryer Option
WKEX200HBA
Gas Dryer Option
WKGX201HBA
Series
WashTower™
Touch Buttons
Yes
Type
Single Unit Front Load Washer and Dryer
Center Control®
Yes






CEE Tier
Tier 2
CEF
3.49
ENERGY STAR® Certified
Yes
IMEF
2.92
IWF
2.9






No. of Washer Programs
6
Washer Programs
Bedding, Delicates, Downloaded, Heavy Duty, Normal, Speed Wash
No. of Washer Options
10
Washer Options
Tub Clean, Wi-Fi* / Remote Start*, TurboWash®, Control Lock*, Drum Light*, Extra Rinse, Prewash, Sanitary*, Signal*, Steam
No. of Wash/Rinse Temps
5
Wash/Rinse Temps
Cold, Cool, Hot, Very Warm, Warm
No. of Spin Speeds
5
Spin Speeds
High, Low, Medium, Medium / High, No Spin
Water Levels
Load Sensing
No. of Soil Levels
5




Turbowash®
Yes
Turbowash® Type
Turbowash® 360°
AI DD®
Yes
AI Sensor Dry™
Yes
Allergiene™ Cycle
Yes
Precise Temperature Control with Variable Heater
Yes
Sanitary Cycle
Yes
SenseClean™ System
Yes
Sensor Dry
Yes
Steam Technology
Yes




3 Minute Installation Check
Yes
4 Adjustable Legs
Yes
4 Tray Dispenser
Prewash, Main Wash (with liquid detergent cup), Bleach, Fabric Softener
Auto Suds Removal
Yes
Control Lock
Yes
Drum Light
Yes
End of Cycle Signal
Yes
Leveling Legs
Yes
LoadSense
Yes
Wrinkle Care Option
Yes
Remaining Time Display/Status Indicator(s)
Yes
Reversible Door
No
Cabinet Vibration Sensor
Yes
True Balance® Anti-Vibration System
Yes
FlowSense™ Duct Clogging Indicator
Yes
Internal Water Heater
Yes
Vent Type
Vented
Venting Option
2 Way Venting




ThinQ® Smart Technology
Yes
Energy Monitoring
Yes
Remote Start and Cycle Monitor
Yes
Smart Pairing
Yes
SmartDiagnosis™ (v3.0)
Yes
ThinQ Care™
Yes
Tub Clean Coach
Yes
Wifi
Yes
Axis
Horizontal
Max RPM
1300
Motor Type
Inverter Direct Drive Motor


All Available Colors
Black Steel (B), Candy Apple Red (R), Nature Green (G), White (W)
Cabinet
Painted Steel
Control Panel
Plastic
Door / Rim
Large Circle Chrome Rim
Door Cover
Tinted Round Tempered Glass
NeveRust™ Stainless Steel Drum
Yes
Top Plate
Steel
Tub Rear
Painted
AAFA
Yes






Dryer Power Source Type
Gas
Dryer BTU Rating
20,000
Washer Electrical Requirements
120V, 10 Amps
Dryer Electrical Requirements
120V, 60Hz, 11.5A
Ratings
CSA Listed
Washer Power Source Type
Electric




LP Conversion Kit
383EEL3002D
Side Venting Kit
3911EZ9131X




Carton (WxHxD)
30 1/16" x 79 11/32" x 32"
Depth with Door Open
55"
Product (WxHxD)
27" x 74 3/8" x 30 3/8"
Weight (Product/Carton)
311 lbs / 346 lbs
