18Sound

SPEAKER 18SOUND 6" 6NM410-16ohms / 6ND410-16ohms

(No reviews yet) Write a Review
SKU:
ALT06410WF16N
Shipping:
Free Shipping
On Sale
  • SPEAKER 18SOUND 6" 6NM410-16ohms / 6ND410-16ohms
  • SPEAKER 18SOUND 6" 6NM410-16ohms / 6ND410-16ohms
  • SPEAKER 18SOUND 6" 6NM410-16ohms / 6ND410-16ohms
  • SPEAKER 18SOUND 6" 6NM410-16ohms / 6ND410-16ohms
Now: $155.67
Was: $239.49

Description

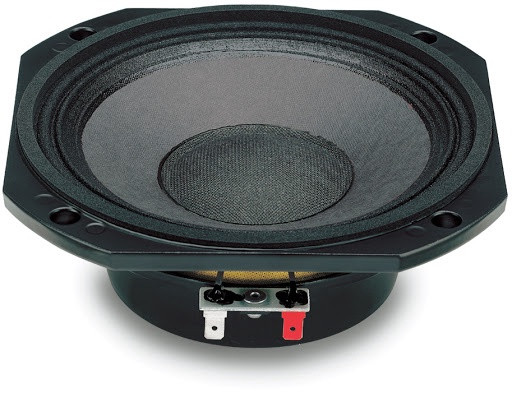

18 Sound 6NM410 6" Neodymium Midrange Speaker
  • Impedance: 16 ohms / minimum Nominal Impedance: 8.2 ohms at 25 ° C
  • AES Program Power: 180W / Power: 240W / Peak Power: 480W
  • Frequency range: 200 ÷ 8000 Hz / Max recomm frequency: 5000 Hz.
  • Ideal for medium horn and direct radiation applications

Size: 6"
Power Rating: 180W AES
Frequency Response: 200-8kHz
Sensitivity: 102db
Impedance: 16 ohms
Voice Coil: 1.75"
Resonant Frequency: 120 Hz
Weight: 2.76 lbs.

The 6ND410 can be used as a mid-range in both horn and direct radiation, closed or reflex enclosures, as small as 2 liters. The extremely powerful external neodymium magnet assembly assures high flux concentration, low power compression and excellent heat exchange. Consequently, the levels of force factor and power handling are at a top professional level with an optimum power to weight ratio. A consistent heat transfer is guaranteed by the encapsulation of the magnetic structure in the interior of the basket, offering a large contact space between the back plate and the dissipating structure. The curvilinear cone-surround, has been created using computer aided vibrational modeling software to move all undesired bell modes out of the usable frequency range.
