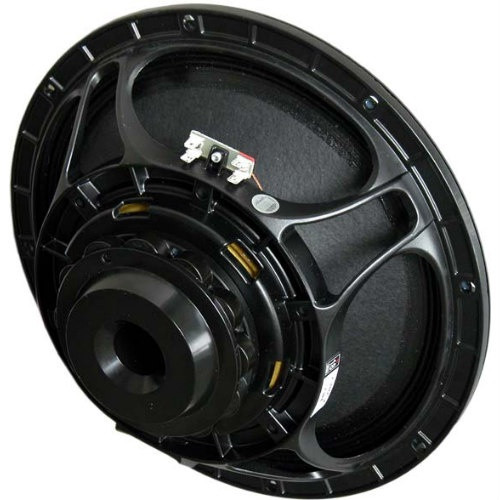

Eighteen Sound  12ND930

Eighteen Sound 12ND930 is a 12-inch speaker with neodymium magnet, which meets the strictest high quality requirements. Thanks to its versatility, the 12ND930 is used in 2-way systems (coupled to 1.4 ″ drivers) or as a subwoofer in a box of about 50 liters.

The magnet

The neodymium magnet ensures a high concentration of flux, a low  Power Compression  and an excellent heat exchange. This is because its configuration is considerably more efficient than the traditional type, in which the magnetic element is embedded between the two polar plates. As a result, high levels of force factor and better power management are achieved. In addition, the direct contact between the large heat sink and the basket represents a fundamental improvement in the thermal connection and heat dissipation. For this, the power management capacity is further improved, leading to a lowering of the Power Compression.

The mobile crew

The curved curvilinear cone, created with a special high-strength wood pulp, returns the best possible linearity within its useful frequency range. In addition, the suspension - made of linen-derived material - is highly resistant to aging and wear. The cone treatment is moisture repellent and significantly dampens membrane resonances. The 75mm spool assembly of the Eighteen Sound 12ND930 is wound on a sturdy fiberglass backing to improve power transmission and power management. In fact, the base of the coil group construction is the ISV - Interleaved Sandwich Voice Coil technology . In addition, DDR - Double Demodulating Rings technologyit helps to attenuate the already low distortion, improving the sound quality. The double demodulating ring, in fact, flattens the impedance and allows a constant power transfer.
