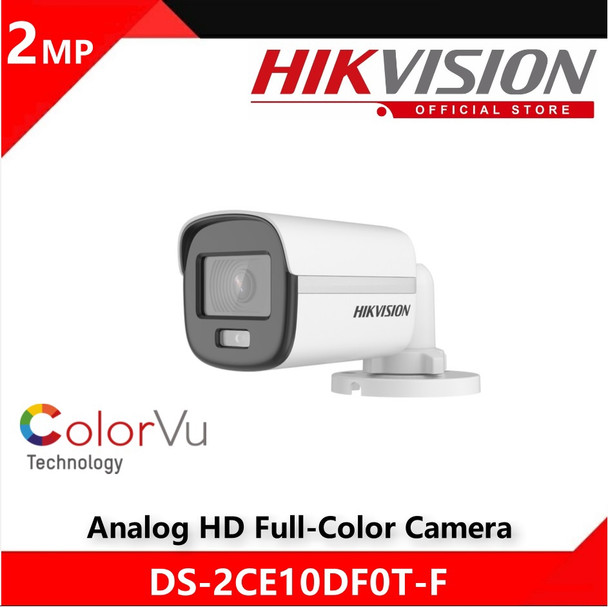

DS-2CE10DF0T-F

2 MP ColorVu Fixed Mini Bullet Camera

• High quality imaging with 2 MP, 1920 × 1080 resolution
• 24/7 color imaging with F1.0 aperture
• 3D DNR technology delivers clean and sharp images
• 2.8 mm, 3.6 mm, 6 mmfixed focal lens
• Up to 20 m white light distance for bright night imaging
• One port for four switchable signals (TVI/AHD/CVI/CVBS)
• Water and dust resistant (IP67)

DESCRIPTION

• Camera
• Image Sensor                     2 MP CMOS
• Signal System                    PAL/NTSC
• Resolution                         1920 (H) × 1080 (V)
• Frame Rate

  TVI: 1080p@25fps/30fps

  CVI: 1080p@25fps/30fps

  AHD: 1080p@25fps/30fps

  CVBS: PAL/NTSC

• Min. Illumination               0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
• Shutter Time                    PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
• Lens
•                       2.8 mm, 3.6 mm, 6 mm Fixed Lens
• Field Of View

  2.8 mm, horizontal FOV: 98°, vertical FOV: 51°, diagonal FOV: 115°

  3.6 mm, horizontal FOV: 76°, vertical FOV: 41°, diagonal FOV: 90°

  6 mm, horizontal FOV: 50°, vertical FOV: 27°, diagonal FOV: 58°

• Lens Mount                   M12
• Light Alarm                   Solid Light Alarm (White Light)
• WDR                             (Wide Dynamic Range)Digital WDR
• Angle Adjustment           Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°

• Image
• White Light                           Auto/Off
• Image Mode                        STD/HIGH-SAT/HIGHLIGHT
• AGC                                    Yes
• Day/Night Mode                  Color
• White Balance                     Auto/Manual
• AE (Auto Exposure)Mode    DWDR;BLC;HLC;Global
• Noise Reduction                  3D DNR/2D DNR
• Language                           English
• FunctionSharpness            ;Mirror;Brightness;Anti-Banding;Smart Light

• Interface
• Video Output                       Switchable TVI/AHD/CVI/CVBS

• General
• Operating Conditions          -40°C to 60°C (-40°F to140°F), Humidity: 90% or less (non-condensing)
• Power Supply

  12 VDC ± 25%

  *You are recommended to use one power adapter to supply the power for one camera.

• Consumption                      Max. 2.4 W
• Protection Level                 IP67
• Material                              Metal
• White Light Range             Up to 20 m
• Communication                 HIKVISION-C
• Dimension                         161.1 mm × 70 mm × 70 mm (6.34″ × 2.76″ × 2.76″)
• Approx.                              395 g (0.87 lb)
