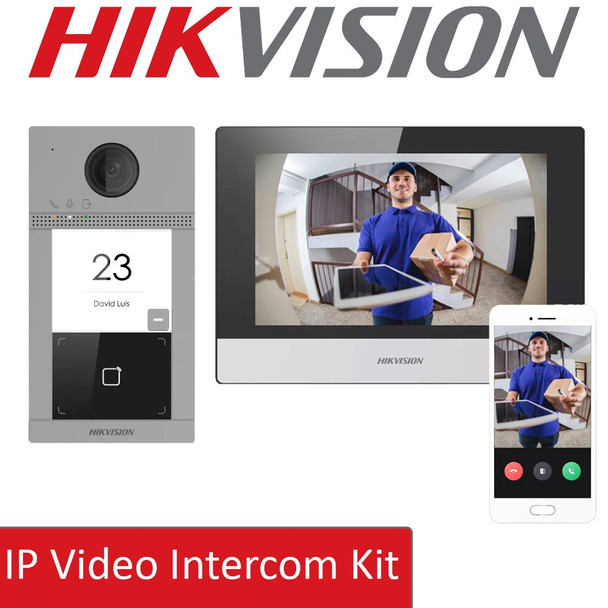

DS-KIS604-P(B)]

IP video intercom kit

• Standard PoE
• Noise suppression and echo cancellation
• Configuration remotely via Web
• Stores messages and captured pictures in the TF card
• Remote unlocking via the client software or the mobile client

• Door station/System parameters
• Operation systemEmbedded Linux operation system
• Operation modeSingle-button
• Flash

  32 M



• RAM

  256 M



• Door station/Video parameters
• Camera

  2MP HD camera



• Night visionLow illumination IR supplement mode:3 m
• Backlight compensationSupport
• Digital noise reductionSupport
• WDRTrue WDR
• Field of viewHorizontal: 129° Vertical: 75°
• Video Compression StandardH.264
• Stream

  Main stream: 1080p@30fps, 720p@25fps

  Sub stream: D1@25fps

• Motion detectionSupport
• Flash-avoid frequency50 Hz, 60 Hz

• Door station/Audio parameters
• Audio inputBuilt-in omnidirectional microphone
• Audio outputBuilt-in loudspeaker
• Audio qualityNoise suppression and echo cancellation
• Audio compression standardG.711 U
• Audio compression Rate64 Kbps
• Audio intercom

  Two-way audio communication



• Door station/Network parameters
• Network protocol

  TCP/IP, RSTP



• Wired network10/100 Mbps Ethernet

• Door station/Device interfaces
• RS-485

  1



• Alarm input4
• Debugging port1
• Grounding1
• TAMPER switch1

• Door station/General
• Power consumption

  ＜ 10 W



• Working temperature-40° C to 53° C(-40° F to 127.4° F)
• Working humidity10% to 95%
• Dimension174 mm × 91 mm × 29 mm
• InstallationSurface mounting/ Flush mounting
• Protection level

  IP65, IK08



• Indicator3
• Power supply

  IEEE802.3af, standard PoE

  12 VDC

• Indoor station/System parameters
• Operation systemEmbedded Linux operation system
• Memory128 MB
• Flash32 MB

• Indoor station/Display parameters
• Display screen7-inch colorful TFT screen
• Display resolution1024 × 600
• Operation methodCapacitive touch screen

• Indoor station/Audio parameters
• Audio inputBuilt-in omnidirectional microphone
• Audio outputBuilt-in loudspeaker
• Audio quality

  Noise suppression and echo cancellation



• Audio compression standard

  G.711 U



• Audio compression Rate

  64 Kbps



• Indoor station/Network parameters
• Wired network

  10/100 Mbps self-adaptive



• Wireless network

  Wi-Fi 802.11 b/g/n



• Protocol

  TCP/IP, SIP, RTSP



• Network interface1 RJ-45 10/100 Mbps self-adaptive

• Indoor station/Device interfaces
• RS-4851
• Alarm input8-ch alarm inputs
• Relay output2
• TF cardMax to 32 G, SD 2.0 or lower version

• Indoor station/General
• Power consumption

  ≤ 6 W



• Working temperature

  -10 °C to 55 °C (14 °F to 131 °F)



• Working humidity10% to 90%
• Dimension (L x W x H)

  200 mm × 140 mm × 15.1 mm (7.9" ×

  5.5 × 0.6\")"
