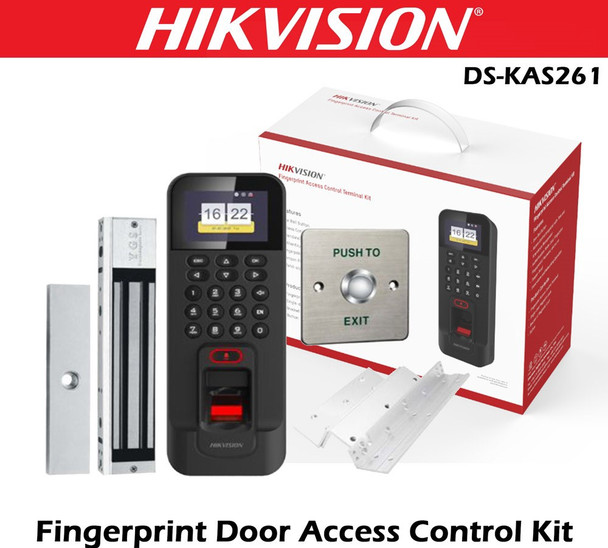

Hikvision DS-KAS261 Fingerprint / Card / PIN Door Access Control Kit

Hikvision Access control systems serve a critical role in any sensitive area, allowing only the right persons to enter at a given time. Multiple configurations cater to various budgets and needs, ranging from the simplest card reader to the now commonly used fingerprint terminals.

This standalone terminals integrate the latest fingerprint algorithms while supporting multiple verification methods, including ID cards and PIN codes. Identification becomes faster and time attendance reports are more accurate. Applications for this technology in the SMB market are expansive, including shops, retail stores, and more. Hikvision’s access control brings power and efficiency to your business.

Specification:

• The Kit includes：Fingerprint terminal: DS-K1T804MF x1
• Single-door Magnetic Lock: DS-K4H258S x1
• Single-door Magnetic Lock bracket: DS-K4H258-LZ x1
• Push button: DS-K7P01 x1

Value Series Fingerprint Access Terminal – DS-K1T804MF

• Standalone access control fingerprint terminal
• LCD display screen
• 3,000 fingerprints, 3,000 cards and 100,000 events storage
• Built-in card reader for Mifare1 card
• Communication via TCP/TP and Wi-Fi
• RS-485, wiegand interface
• EHome for public network communication
• Alarm input and output interface
• Multiple time attendance status

Value Series Magnetic Lock – DS-K4H258S

• Magnetic lock supports static linear thrust of 280 kg (617 Lbs)
• Power supply can be 12VDC or 24VDC, (default voltage is 12VDC)
• Suitable for wooden door, glass door, metal door and fireproof door
• LED indicator displays door lock status
• Abrasion-proof materials

Value Series Magnetic Lock Bracket DS-K4H258-LZ

• Model: DS-K4H258-LZ
• Subseries Value Magnetic Locks
• Material Shell: hard anodizing electroplated
• Weight: 0.77kg
• Dimensions: Bracket Dimension (L×W×H): 238×30×47mm (9.4×1.2×1.9″);Z-bracket Dimension (L×W×H): 185×44×100mm (7.3×1.7×3.9)”
• Suitable Door Wooden Door, and Metal Door

Exit & Emergency Button DS-K7P01

• Aluminum alloy panel, metal button
• Dimension(L×W×H): 86 × 86 × 20mm (3.39 × 3.39 × 0.79″)
