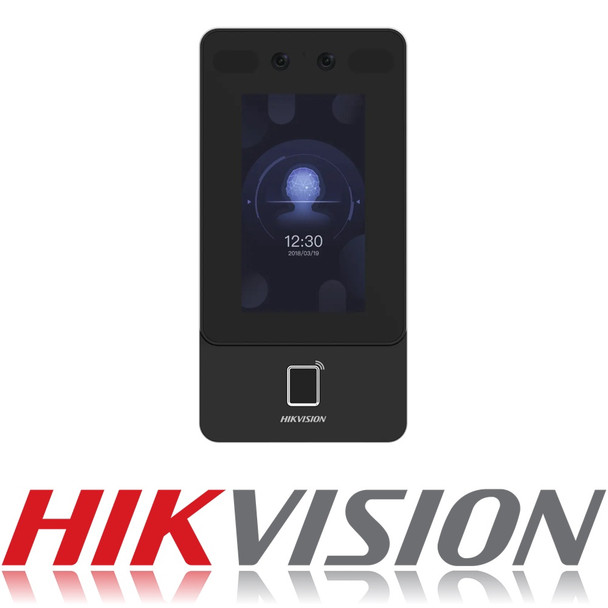

DS-K1T342MFWX

Face Recognition Terminal

• Max.1500 faces capacity, Max.3000 fingerprints capacity, and Max.3000 cards
• Face Recognition Terminal, 4.3-inch LCD touch screen, 2 Mega pixel wide-angle lens, built-in M1card reading module
• Two-way audio with client software, indoor station, and main station; Supports TCP/IP, Wi-Fi
• Supports ISAPI, ISUP5.0
• Configuration via the web client
• Face Recognition Distance: 0.3 m to 1.5 m; Duration ＜ 0.2 s/User; Accuracy rate ≥ 99%
• Supports face with mask recognition
• Powers supply by standard PoE and at the same time powers supply for door lock (12 VDC/1 A)
• Supports platform-applied personal PIN and device-set personal PIN

• System
• Operation systemLinux

• Display
• Dimensions4.3-inch
• Resolution272 × 480
• TypeLCD
• Operation methodCapacitive touch screen

• Video
• Pixel2 MP
• Lens× 2
• Video standardPAL (Default) and NTSC

• Network
• Wired network10 M/100 M self-adaptive
• Wi-FiSupport

• Interface
• PoEIEEE802.3at, standard PoE
• Network interface1
• RS-4851
• Wiegand1
• Lock output1
• Exit button1
• Door contact input1
• TAMPER1
• USB1

• Capacity
• Card capacity3,000
• Face capacity1,500
• Fingerprint capacity3,000
• Event capacity150,000

• Authentication
• Card typeM1 card
• Card reading frequency13.56 MHz
• Face recognition duration＜ 0.2 s
• Face recognition accuracy rate＞99%
• Face recognition distance0.3 to 1.5 m
• Fingerprint recognition duration＜1 s

• General
• Power supply

  Power input: Power interface (power adapter included, 12 VDC/1 A) or PoE (37 to 57 VDC/0.6 A)

  Power output: Power supply for door lock, 12 VDC/1 A (only when the device is powered by PoE supporting powering supply for door lock)

• Working temperature-30 °C to 60 °C (-22 °F to 140 °F)
• Working humidity0 to 90% (No condensing)
• Dimensions91.3 mm × 181.3 mm × 24.5 mm (3.59" × 7.14" × 0.96")
• InstallationWall Mounting
• Protective levelIP65
• LanguageEnglish, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Korean
• Weight

  Gross weight: 0.93 kg (2.05 lbs)

  Net weight: 0.36 kg (0.79 lbs)

• Function
• Face anti-spoofingSupport
• Audio promptSupport
• Time synchronizationSupport
