Description
Description

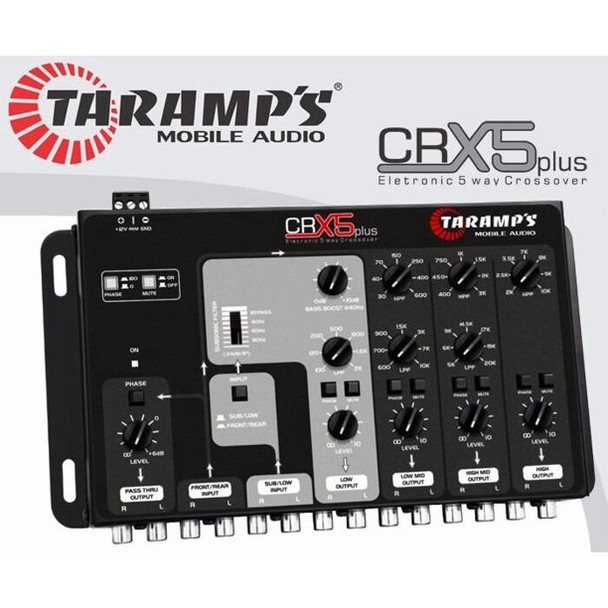

The CRX 5 Plus crossover is carefully developed with state-of-the-art technology, alongside cutting edge components and quality raw materials. Therefore, it is a reliable product for automotive audio systems. Offering five ways, it has exclusive features, such as subsonic filter on the low way, full-range input, selectable subwoofer input, pass-thru input, and ways that can be muted and have their phase adjusted. Besides that, it also has a BASS BOOST control, which is a reinforcement for bass frequencies on the low way.
TECHNICAL INFORMATION
| ADDITIONAL INFORMATION | |
|---|---|
| Way: 5 Pass Thru Way( R+L ) Selectable phase: 0/180º Low Way (R+L) Mono Subsonic Filter: Selectable (Bypass/40/60/80Hz)(-24dB/8ª butterworth) Low Pass Filter: Variable 100Hz ~2KHz (-12dB/8ª Linkwitz-Riley) Bass Boost: Variable 0 ~+10dB (40Hz) Selectable phase: 0/180º Low Mid Way (R+L) Mono High Pass Filter: Variable 30Hz ~ 600Hz (-12dB/8ª Linkwitz-Riley) Low Pass Filter: Variable 600Hz ~10KHz (-12dB/8ª Linkwitz-Riley) Selectable phase: 0/180º High Mid Way (R e L) Stereo High Pass Filter: Variable 400Hz ~ 3KHz (-12dB/8ª Linkwitz-Riley) Low Pass Filter: Variable 5KHz ~20KHz (-12dB/8ª Linkwitz-Riley) Selectable phase: 0/180º High Way (R e L) Stereo High Pass Filter: Variable 2KHz ~ 10KHz (-12dB/8ª Linkwitz-Riley) Selectable phase: 0/180º Input Impedance: 10K ohms Output Impedance: 470K ohms Maximum input level R/L: 4,57V RMS (+15,4 dBu) Maximum output level R/L: 9,3V RMS (+21,6 dBu) Maximum output Pass Thru R/L: 9,3V RMS (+21,6 dBu) Crosstalk: >85dB Protection: Reverse polarity Voltage Range: 10,5 ~16VDC Nominal Consumption (12.6): 420mA @ 12,6 Vcc Dimensions (WxHxD): 9.37" x 1.57" x 5.71" Weight: 1.54lb |
