BX1600M-LM

Description

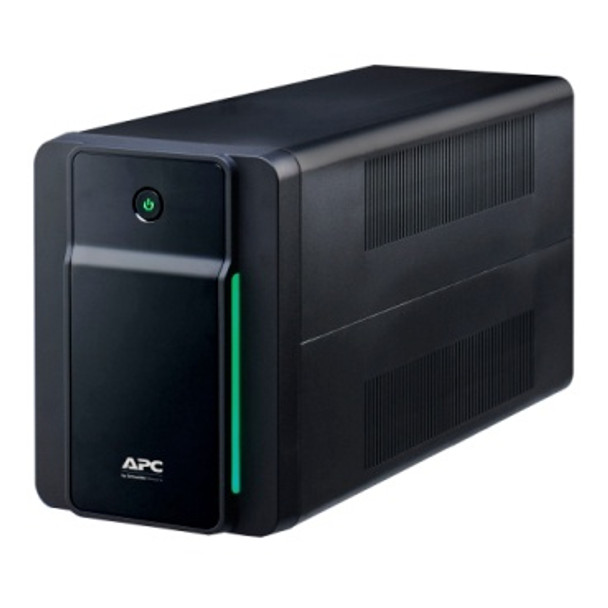

1600VA/960W Line Interactive UPS Control LED brightness, quick silence and generator settings with the push of a single power button. Our new BX Series offers data protection for data transmission over 1 gigabit speed networks. Ideal for home and office users Ready-to-use USB communication cable
Specs
General Description
Delivery Time
There is usually stock in inventory
Principal
Execution time for loading
960
IN
Min.-max.: 96-960 W
0min 43s
Max. capacity used
100 %
Nominal power in W
960 W
rated power in VA
1600 VA
Product or Component Type
Uninterruptible power supply (UPS) ((*))
cable length
1,5 m
Battery Type
Lead acid battery
Product Range
Back-UPS
Batteries and autonomy
Execution time
View Runtime Graph
Efficiency
View Efficiency Graph
Pre-installed batteries
0
Free battery slots
0
Typical recharge time
8 H
battery voltage
24 V
battery capacity
7.0 Ah
battery life
3…5 yrs
Replacement battery
APCRBC176
Battery Chart Comments
Curve appropriate to the measured autonomy data. All measurements were taken with new, fully charged batteries, under typical environmental conditions, with no power input, and balanced resistive load output (PF = 1.0).
Extendable duration
0
General
equipment supplied
user manual
Number of slots without power module
0
Number of power module slots filled
0
redundant
No
Physical
Color
Negro
Height
19 cm
Depth
39 cm
Product Weight
10,3 kg
mounting preference
No preference
Mounting Mode
Not rack mountable
Two mountable posts
0
Exit
Transfer time
Typical value 6 ms : Maximum value 10 ms
Accordance
Product Certifications
NOM
RETI
Environmental
Working Ambient Temperature
0…40 °C
relative humidity
0…95% non-condensing
Maximum Operating Altitude
0...3000 m
Ambient Storage Temperature
-15…40 °C
Storage relative humidity
0…95% non-condensing
storage altitude
0…3000 m
noise level
40 DBA
IP protection class
Ip20
Communications and management
alarm function
On-line LED indicators: battery on
Surge protection and filtering
Surge energy rating (Joules)
350 J
Packaging units
Package unit type 1
PCE
Number of units in package 1
1
Package 1 Height
29,7 cm
Package 1 Width
23,5 cm
Package 1 Length
49,5 cm
Package 1 Weight
11,3 kg
