Description

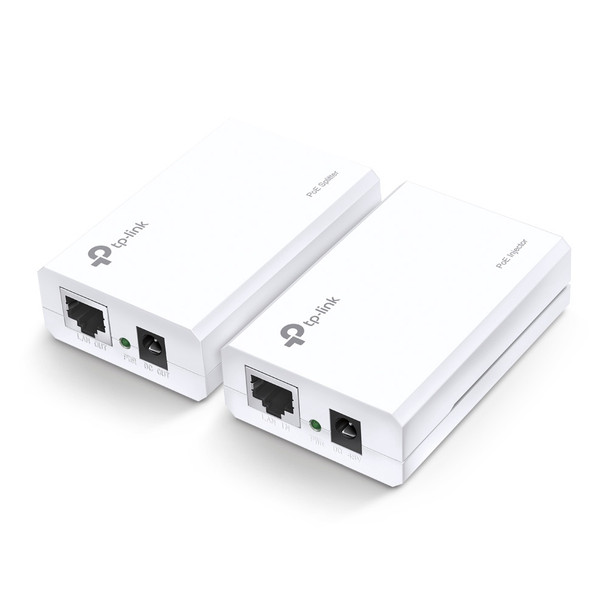

TL-POE200

Power over Ethernet Adapter Kit

Carries power & data over a single Ethernet cable up to 100 meters (328 feet) away
12VDC, 9VDC, or 5VDC selectable power output
Plug-and-Play, requires no configuration
What This Product Does

The TL-POE200 is designed to deliver power and data over a single Ethernet cable to an Ethernet enabled device up to 100m away. The PoE kit uses two devices, one, the ´injector´ injects power and data into a single Ethernet cable while the other, the ´splitter´ placed at the receiving end splits the power and data back into two cables to be used by the connected Ethernet device. This convenience allows users to place Ethernet enabled devices such as access points, IP cameras, or VoIP phones anywhere that they are best suited, regardless of whether a power socket is available, to achieve the best performance for the connected devices.

*TP-LINK's TL-POE200 uses widely adopted PoE technology in the industry and provides more cost-effective PoE solution. It is highly recommended not to pair the PoE products with other PoE adapters unless under professional guidance.

HARDWARE FEATURES
Interface	For POE200A： 1 10/100Mbps Auto-Negotiation/Auto MDI/MDIX RJ45 LAN port 1 10/100Mbps Auto-Negotiation/Auto MDI/MDIX RJ45 PSE port 1 48VDC power input port For POE200B: 1 10/100Mbps Auto-Negotiation/Auto MDI/MDIX RJ45 LAN port 1 10/100Mbps Auto-Negotiation/Auto MDI/MDIX RJ45 PD port 1 12/9/5VDC power output port (5.5 mm round barrel)
LED Indicator	PWR
Dimensions ( W x D x H )	3.2 × 2.1 × 0.9 in. (81 × 54 × 24 mm)

OTHERS
Power Supply Unit of PoE Injector	Input: 100~240VAC Output: 48V, 0.5A Switching PSU
Output Power For PoE Splitter	12, 9, 5VDC selectable
Environment	Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
